Anti Collapse Mesh for Pallet Racking

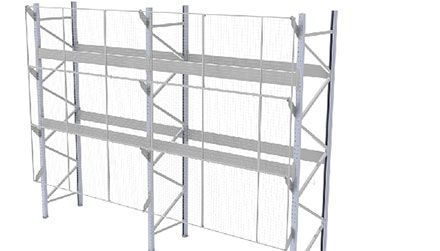

Anti-Collapse Mesh can be fixed to the rear of pallet racking and shelving systems.

This system will help protect operatives where there is a potential risk from falling objects from the storage system.

The Troax Musca anti-collapse system prevents any risk of spillage from pallets in warehouse storage. This is a system that has been created for safe handling and storage of products in a logistics environment.

TROAX has its own research and development department, which continually works to optimise our products and system solutions. All tests are carefully documented and form the basis for our product development. Grey increases visibility for safety.

acm

Troax MUSCA anti collapse panels
Panels (HxW) mm:
Panel 2200 x 700
Panel 2200 x 1200
Panel 2200 x 1500
Panel 1100 x 700
Panel 1100 x 1200
Panel 1100 x 1500
Available in mesh sizes 50 x 50, 100 x 50 & 25 x 25 mm

Technical information
Ram: 19 x 19 x 1.0 mm
Tråd: 2.5 x 2.5 mm
Finish: Powder paint,
Grey RAL 7037
Available with hot-dip galvanised finish

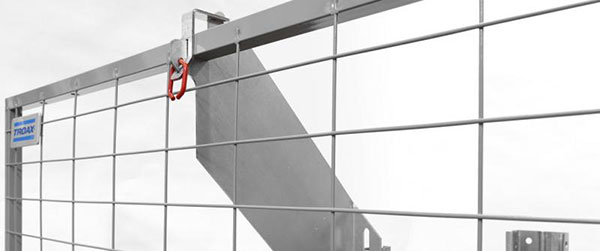

BRACKET
Ultima Bracket
Ultima 150 mm
Ultima 210 mm

Click here to download brochure

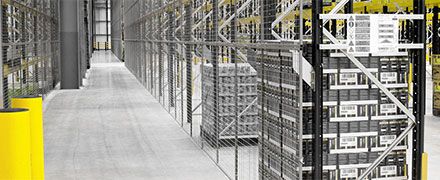

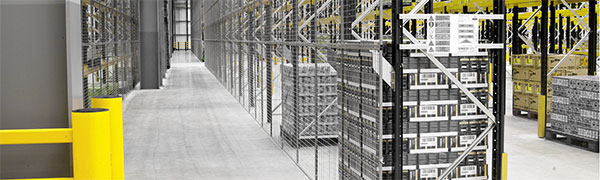

Gallery
